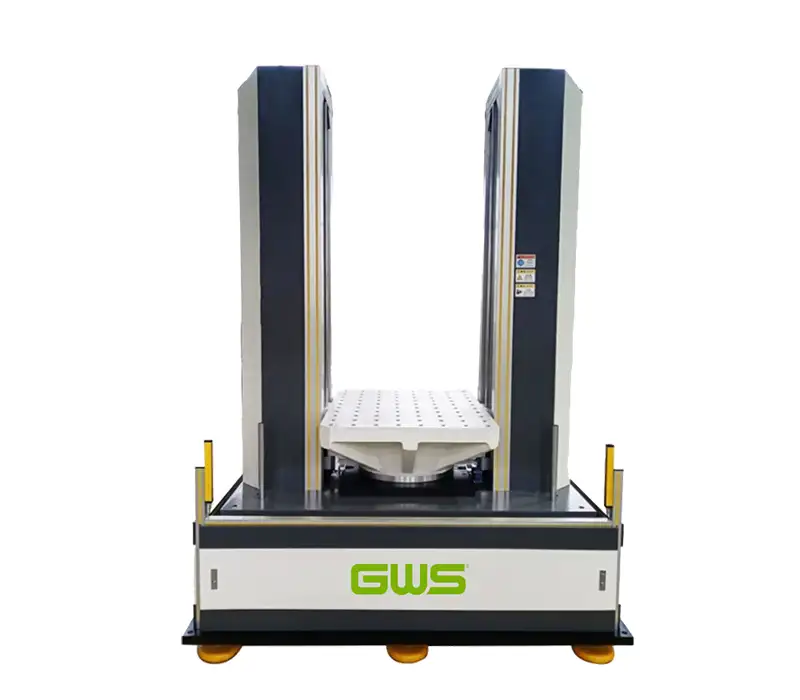

GWS11 Pneumatic Vertical Shock Test System
GWS11 series pneumatic vertical shock test system is suitable for evaluating the functional reliability and structural integrity of various products under shock or bump environments, thereby improving or optimizing the structural design or layout of the products. The system meets the requirements of both shock and bump test, can perform conventional half-sine wave, post-peak sawtooth wave, trapezoid wave and other waveform shock tests.
Features
• Pneumatic drive, simple structure and high
• Pollution free, without hydraulic leak risk and keep the environment clean.
• Pneumatic drive greatly improves the shock test efficiency, maximum shock rate up to 120 times/ min.
• It can easily realize large pulse width and small overload test.
• With a fast shock rate comparing to motor or hydraulic driven table, it has higher reliability and better bump waveform.
• The speed and rate of shock can be easily controlled by adjusting the gas pressure.
• IPS-2000 shock control and measurement system can perform manual shock, continuous shock, single shock, and interval shock.
• Built-in brake mechanism ensures the safety of operation in any situation.

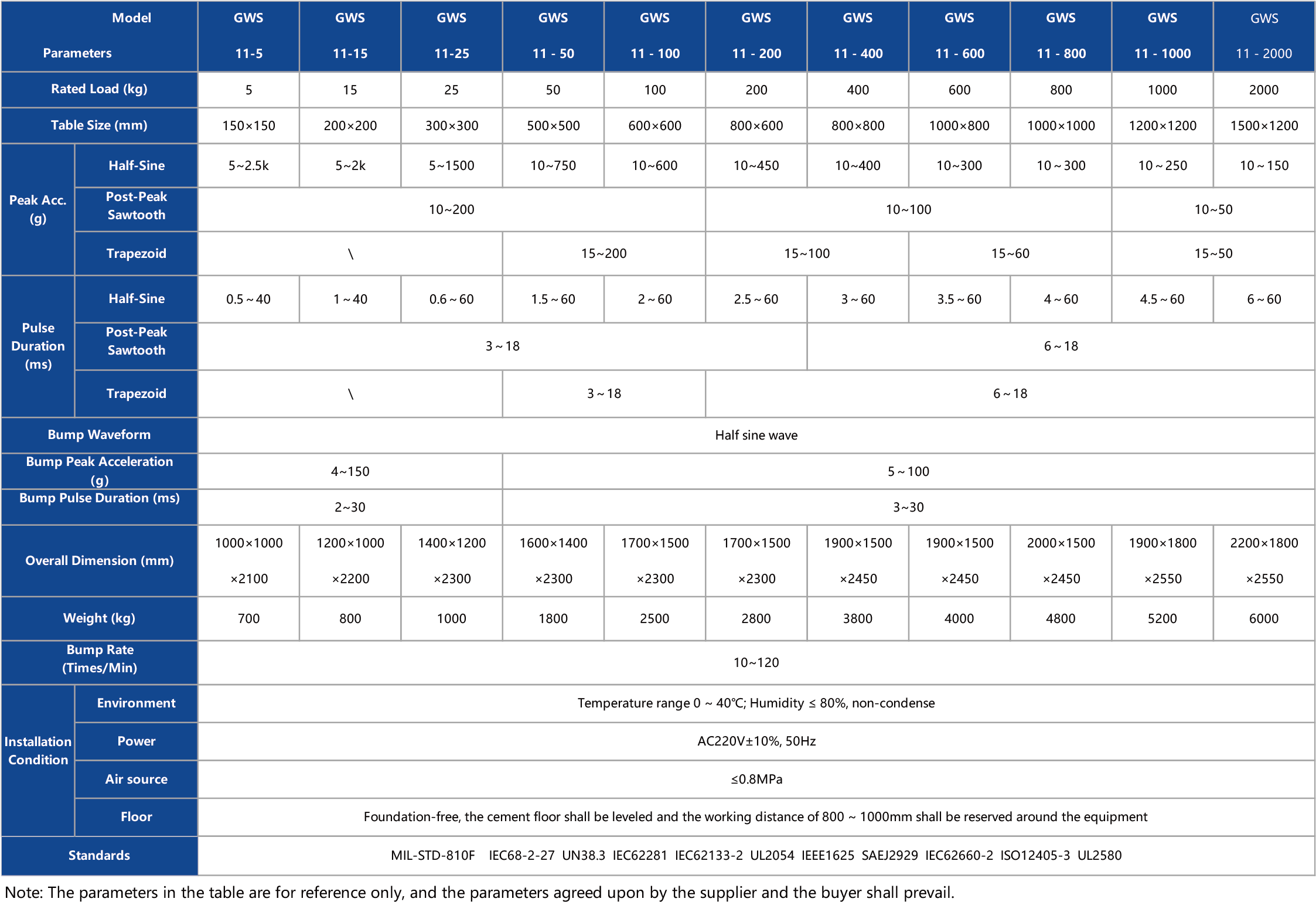

| Model Parameters | GWS12-10 | GWS12-50 | GWS12-100 | GWS12-200 | GWS12-500 | GWS12-1000 | GWS12-2000 | GWS12-3000 | ||
| Rated Load (kg) | 10 | 50 | 100 | 200 | 500 | 1000 | 2000 | 3000 | ||
| Table Size (mm) | 200×200 | 500×500 | 600×600 | 800×800 | 1000×1000 | 1200×1200 | 1500×1500 | 2000×2000 | ||
| Peak Acc. (g) | Half-Sine | 10~5000 | 10～1500 | 10～1000 | 10~800 | 10~600 | 10~500 | 10~200 | 10~150 | |
| Post-Peak Sawtooth | 10～200 | 10~100 | 10~50 | |||||||
| Trapezoid | / | 15～200 | 15～200 | 15~100 | 15~60 | 15~60 | 15~50 | 30~50 | ||
| Pulse Duration (ms) | Half-Sine | 0.3~40 | 1~60 | 1.5～60 | 2～60 | 2.5～60 | 3～60 | 6～60 | 8～60 | |
| Post-Peak Sawtooth | 3~18 | 6~18 | ||||||||
| Trapezoid | / | 3~18 | 6~18 | |||||||
| Bump Waveform | Half sine wave | |||||||||
| Bump Peak Acceleration （g） | 4~150 | 5~100 | ||||||||
| Bump Pulse Duration (ms) | 2~30 | 3~30 | ||||||||
| Bump Rate (Times/Min) | 10~120 | |||||||||
| Overall Dimension (mm) | 3000×1150×850 | 3300×1150×850 | 3500×1200×850 | 3800×1300×850 | 4000×1450×850 | 4500×1650×850 | 5500×2000×850 | 6000×2200×850 | ||
| Weight (kg) | 2000 | 2500 | 3000 | 4000 | 4500 | 5000 | 6000 | 7500 | ||
| Installation Condition | Environment | Temperature range 0 ~ 40℃; Humidity ≤ 80%, non-condense | ||||||||
| Power | AC220V±10%, 50Hz | |||||||||
| Air source | ≤ 1MPa | |||||||||
| Floor | Foundation-free, the cement floor shall be leveled and the working distance of 800 ~ 1000mm shall be reserved around the equipment | |||||||||
| Standards | GB∕T2423 GJB150 GJB360 GJB548 GJB4.8 GJB1217 MIL~STD~810F IEC68~2~27 | |||||||||
